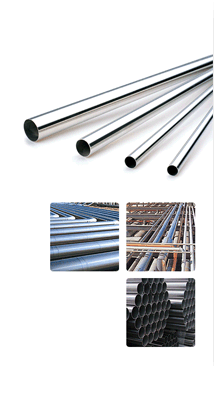

Stainless Steel Pipes
|
| |
Stainless Steel Pipes
SEJIN TUBE TECH has grown to be one of the leading manufacturer and supplier for the welded Stainless Tubes such as ASTM A249, ASME SA249, Stainless Steel Pipes, Heat Exchanger Tubes, Light Gauge Stainless Steel Pipes, Stainless Steel Sanitary Tubing and Stainless Steel Seamless Tube
|
 |
 Dimension |
- Specification : KS D 3576, JIS G 3459, ASTM A 312
- Usage : Corrosion and thermal resisting,
pipes used in textile, pulp industry. |
| (Unit : mm) |
| Nominal Size |
Out Diameter |
Normal Wall Thickness (SCH) |
| 5S |
10S |
20S |
40S |
80S |
| A |
B |
KS |
ASTM |
KS |
ASTM |
KS |
ASTM |
KS |
KS |
ASTM |
KS |
ASTM |
| 8 |
1/4 |
13.8 |
13.72 |
1.2 |
- |
1.65 |
1.65 |
2.0 |
2.2 |
2.24 |
- |
- |
| 10 |
3/8 |
17.3 |
17.15 |
1.2 |
- |
1.65 |
1.65 |
2.0 |
2.3 |
2.31 |
- |
- |
| 15 |
1/2 |
21.7 |
21.34 |
1.65 |
1.65 |
2.1 |
2.11 |
2.5 |
2.8 |
2.77 |
3.7 |
3.73 |
| 20 |
3/4 |
27.2 |
26.67 |
1.65 |
1.65 |
2.1 |
2.11 |
2.5 |
2.9 |
2.87 |
3.9 |
3.91 |
| 25 |
1 |
34.0 |
33.40 |
1.65 |
1.65 |
2.8 |
2.77 |
3.0 |
3.4 |
3.38 |
4.5 |
4.55 |
| 32 |
1 1/4 |
42.7 |
42.16 |
1.65 |
1.65 |
2.8 |
2.77 |
3.0 |
3.6 |
3.56 |
4.9 |
4.85 |
| 40 |
1 1/2 |
48.6 |
48.26 |
1.65 |
1.65 |
2.8 |
2.77 |
3.0 |
3.7 |
3.68 |
5.1 |
5.08 |
| 50 |
2 |
60.5 |
60.33 |
1.65 |
1.65 |
2.8 |
2.77 |
3.5 |
3.9 |
3.91 |
5.5 |
5.54 |
| 65 |
2 1/2 |
76.3 |
73.03 |
2.1 |
2.11 |
3.0 |
3.05 |
3.5 |
5.2 |
5.16 |
- |
- |
| 80 |
3 |
89.1 |
88.9 |
2.1 |
2.11 |
3.0 |
3.05 |
4.0 |
5.5 |
5.49 |
- |
- |
| 90 |
3 1/2 |
101.6 |
101.6 |
2.1 |
2.11 |
3.0 |
3.05 |
4.0 |
5.7 |
5.74 |
- |
- |
| 100 |
4 |
114.3 |
114.3 |
2.1 |
2.11 |
3.0 |
3.05 |
4.0 |
6.0 |
6.02 |
- |
- |
|
| |
| Tolerance |
| Division ＼ Specification |
KS D3576 |
ASTM A312 |
| Tolerance |
Out
Diameter |
D < 30 |
±0.3 |
10.29 ≤ D ≤ 48.26 |
+0.4
-0.8 |
| L ≥ 30 |
±1% |
48.26 ＜ D ≤ 114.3 |
±0.8 |
| 114.3 ＜ D ≤ 219.08 |
+1.6
-0.8 |
| 219.08 ＜ D ≤ 406.4 |
+2.4
-0.8 |
Wall
Thickness |
t ＜ 2 |
±0.2 |
All size |
All size over - 12.5% |
| t ≥ 2 |
±10% |
| Length |
Longer than the specified length |
All size |
+6.4
-0 |
| Straightness |
Shall be practically straight |
Shall be pratically straight |
|
| |
 |
| |
|
|
|
|
|
| |
|
 |
|
|
